Controllers

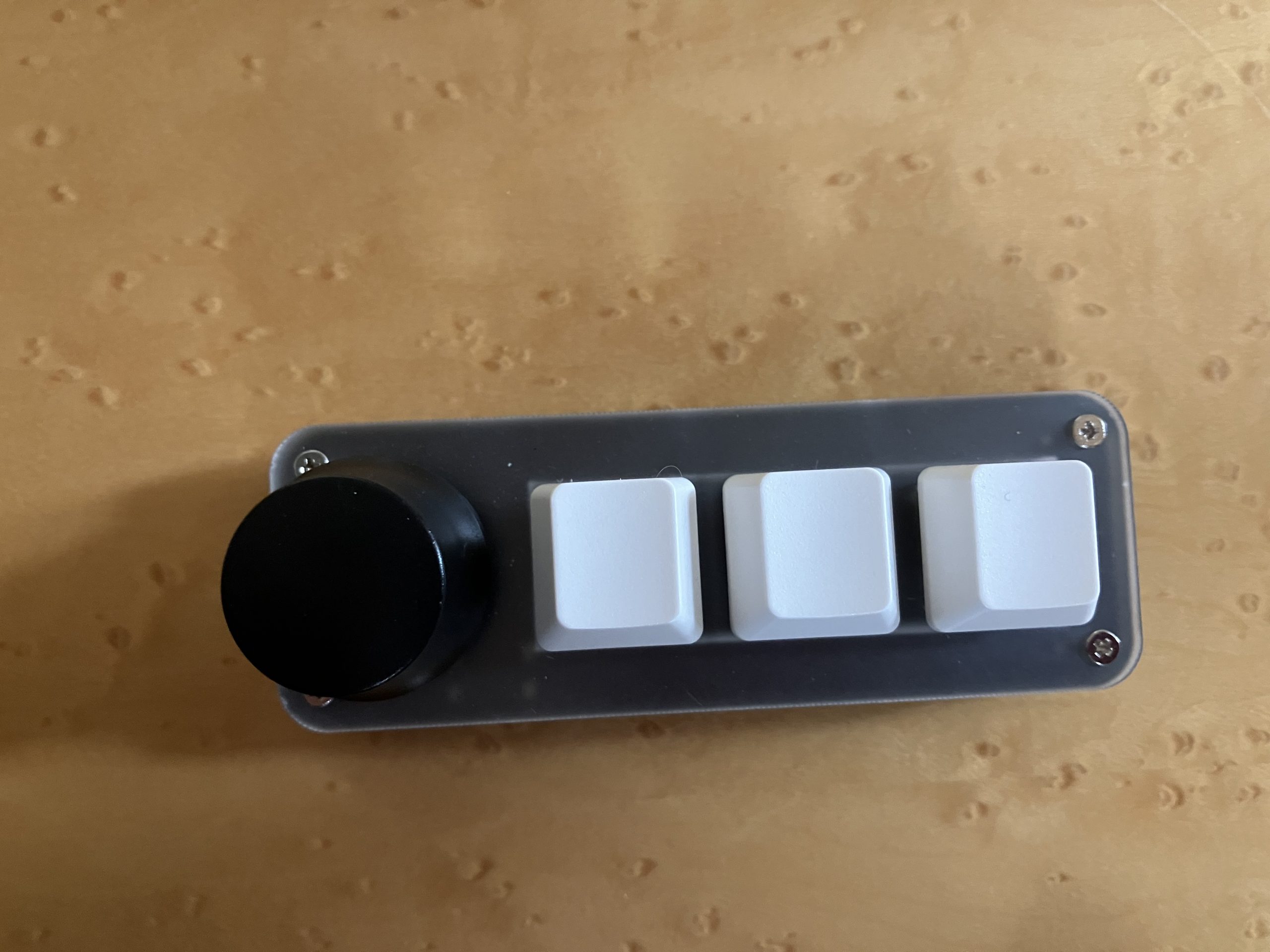

push & turn 31

Push & turn 31 comes with 3 computer keys (yummy tactile) and a rotary encoder. Each button has an RGB led that displays mode or output. Keys can produce Notes, CC momentary codes or CC toggle codes. The rotary encoder produces CC codes in configurable steps (1..127). USB type-c connection.

There is a version that has three banks of CC codes which can be used as scenes.

Open source

The design files and firmware can be found on the pnt31 github

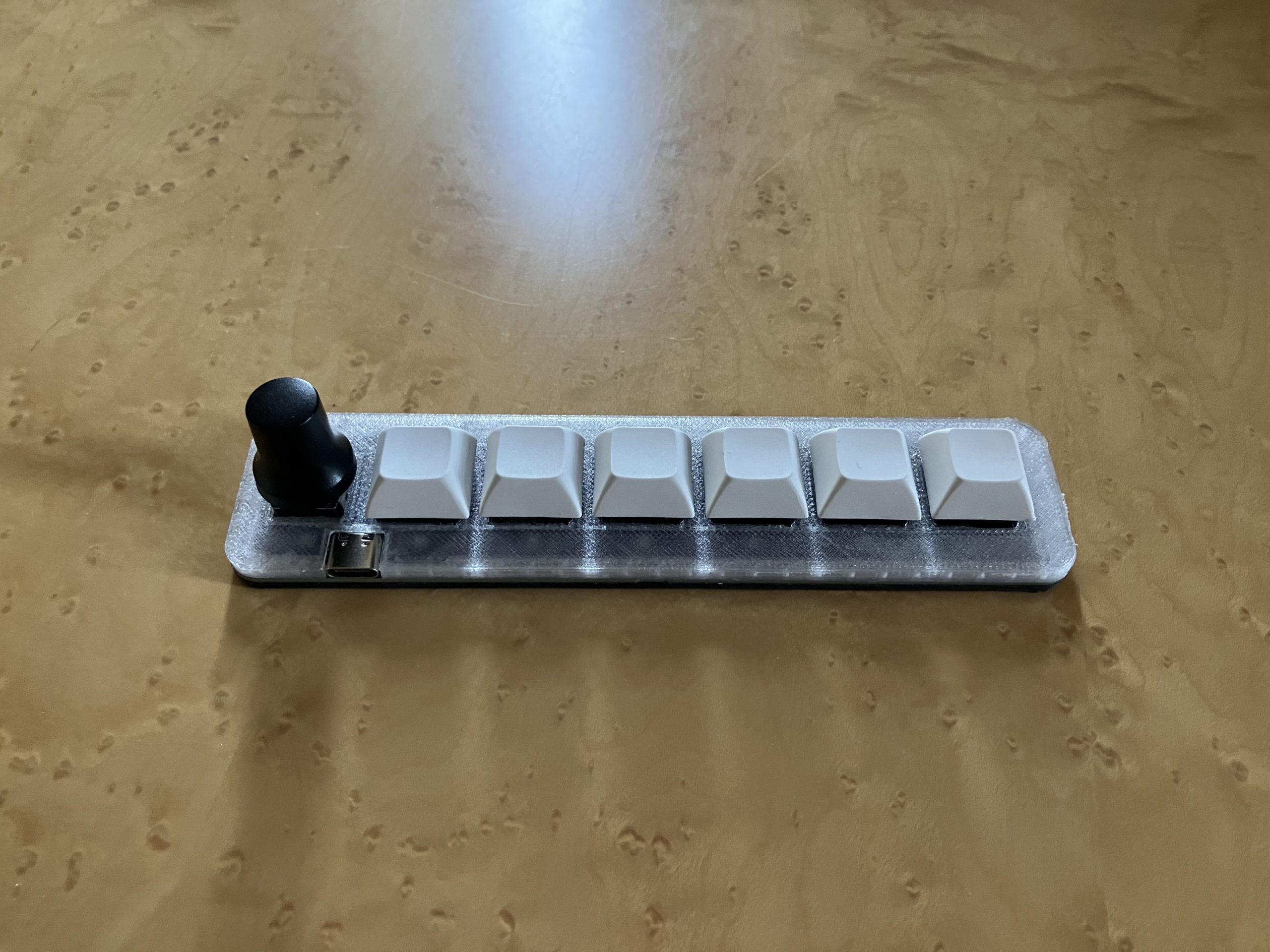

push & turn 61

Like push & turn 31, but then with 6 keys, 1 rotary encoder and 7 RGB leds. USB type-c connection.

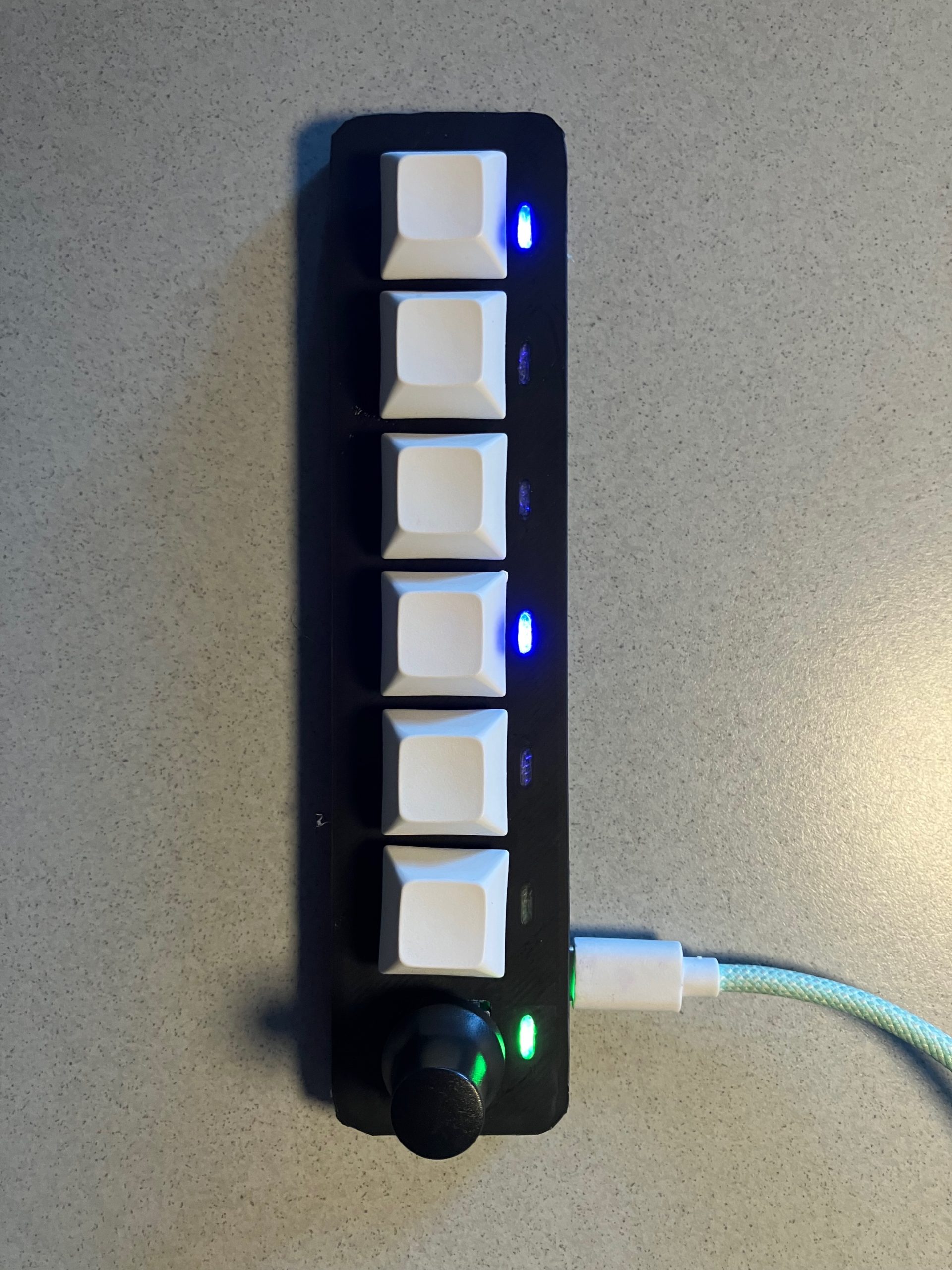

push & turn 61-trs

Push & turn with 6 (keyboard) switches, rotary encoder, 7 RGB leds. USB type-c (midi over USB) and TRS-a output.

push 4

push & turn with 4 instead of 3 buttons (the push & turn 31). I might have some PCBs lying around and can build one if anyone is interested.

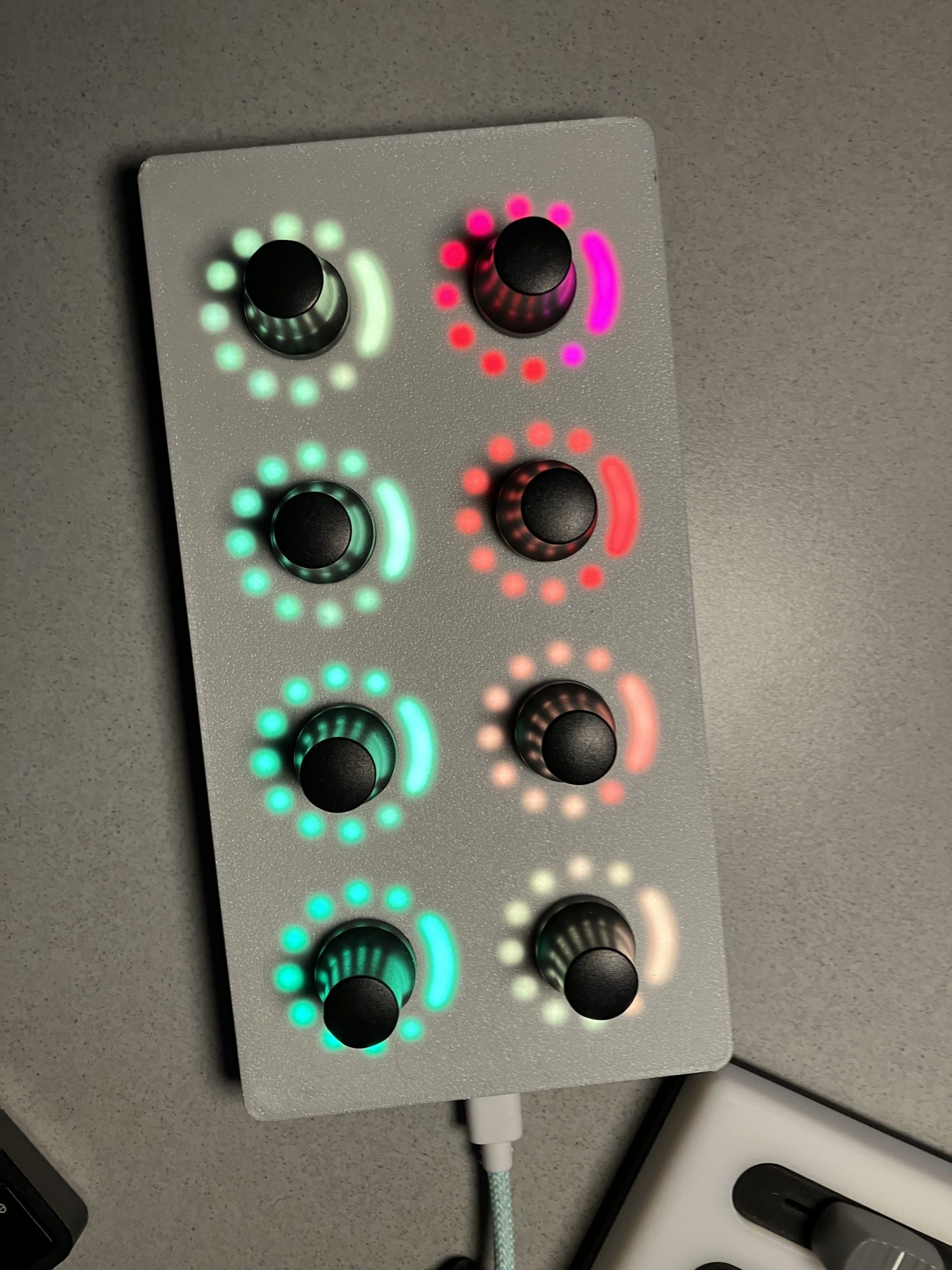

twister 8

A cool device with 8 rotary controller and RGB led rings. Each controller can be set to handle 4 CCs. Simply press the controller to move it to the next bank. Not ready for show time yet, but the hardware works. Firmware requires some work.

twist & push 8

8 rotary controllers, 8 PC keys, 8 RGB LEDs and 8 key leds. One controller to rule them all. Not ready for show time yet, but the hardware works. Firmware requires some work.
